Selective peripheral nerve stimulation (PNS) for medical implant devices

The future of nerve stimulation therapies depends on greater selectivity, easier implantation, and wider adoption. To bring us closer to these objectives, imec explores novel stimulation methods and leverages its knowhow in implantables.

Peripheral nerve stimulation (PNS) is being extensively explored as a treatment for afflictions such as epilepsy, chronic pain, depression and inflammatory bowel disease. Its working principle is to alter the default electrical activity of neural fibers in the peripheral nervous system. These fibers connect the brain to the peripheral organs of the body such as the heart, lungs and intestines. Oftentimes, the cervical vagus nerve is specifically targeted.

Such bioelectronic medicine (BEM) treatment impacts people’s wellbeing without the need for – or as a complement to – pharmacological therapies. And in contrast to conventional pharmaceutically administered medicine, it can be switched on and off instantaneously.

Read the article: from pills to pulses

Accept marketing-cookies to view this content.
Cookie settings

To enhance the comfort and efficiency of future PNS implants, imec researchers are looking towards various improvements – both at the level of the system and of its components.

PNS implant technology: challenging the status quo

Current chronic PNS systems mostly rely on bipolar or tripolar cuff electrodes wrapped around, for instance, the vagus nerve. The electrical stimulation is typically delivered through repetition of short pulses with parameters tuned to maximize treatment efficiency while minimizing the side effects.

This method delivers good results and has improved many people’s lives. However, there’s ample room for improvement. The main drawbacks of current chronic PNS implant technologies are:

  • limited selectivity – To engage specific fibers associated with targeted bodily regions or functions, the current is delivered across the whole cross section of the nerve. This activates fibers innervating body parts not meant to be targeted. And often leads to side effects for the patients: coughing, troublesome swallowing or breathing, a changed voice, headaches, ...
  • complex implantation – The implantation includes fixating a cuff electrode on the nerve, positioning a bulky implantable program generator (IPG) in the chest pocket, and tunneling through the neck to connect the two. Besides the invasiveness of the implantation procedure, complications such as pain, swelling, and infections can arise.

Selective PNS offering at imec

How can we radically improve the selectivity of nerve stimulation towards better outcomes? Imec researchers are investigating intermittent interferential current stimulation (i2CS). It’s a promising method, but it calls for specific electronics with rigorous requirements, and the introduction of novel multi-contact electrodes. The main technological challenges include synchronous delivery of interferential currents through electrode pairs and the ability to minimize signal distortion and leakages when injecting high currents at high frequencies.

To enable this new approach, in collaboration with Feinstein Institute for Medical Research and other partners, imec is overcoming technological challenges and investigating the effects of applying i2CS to living tissue. We do this through:

  • developing technological building blocks to facilitate a minimally invasive implantation procedure: new low-power stimulation engines and in-body powering to minimize the size of IPGs
  • computational modeling to enable optimization of electrode designs and selective stimulation protocols
  • practical experiments to better understand the workings of selective targeting and short- and long-term effects of i2CS

The main research outcomes include:

  • IC design that supports i2CS
  • low-power electronics and novel wireless powering techniques towards miniaturized IPGs
  • experimental in-vivo results demonstrating the benefits of i2CS
  • simulation results that guide electrode design and definition of stimulation protocols
  • multi-contact cuff electrode designs that allow for the i2CS and thus for more selective stimulation

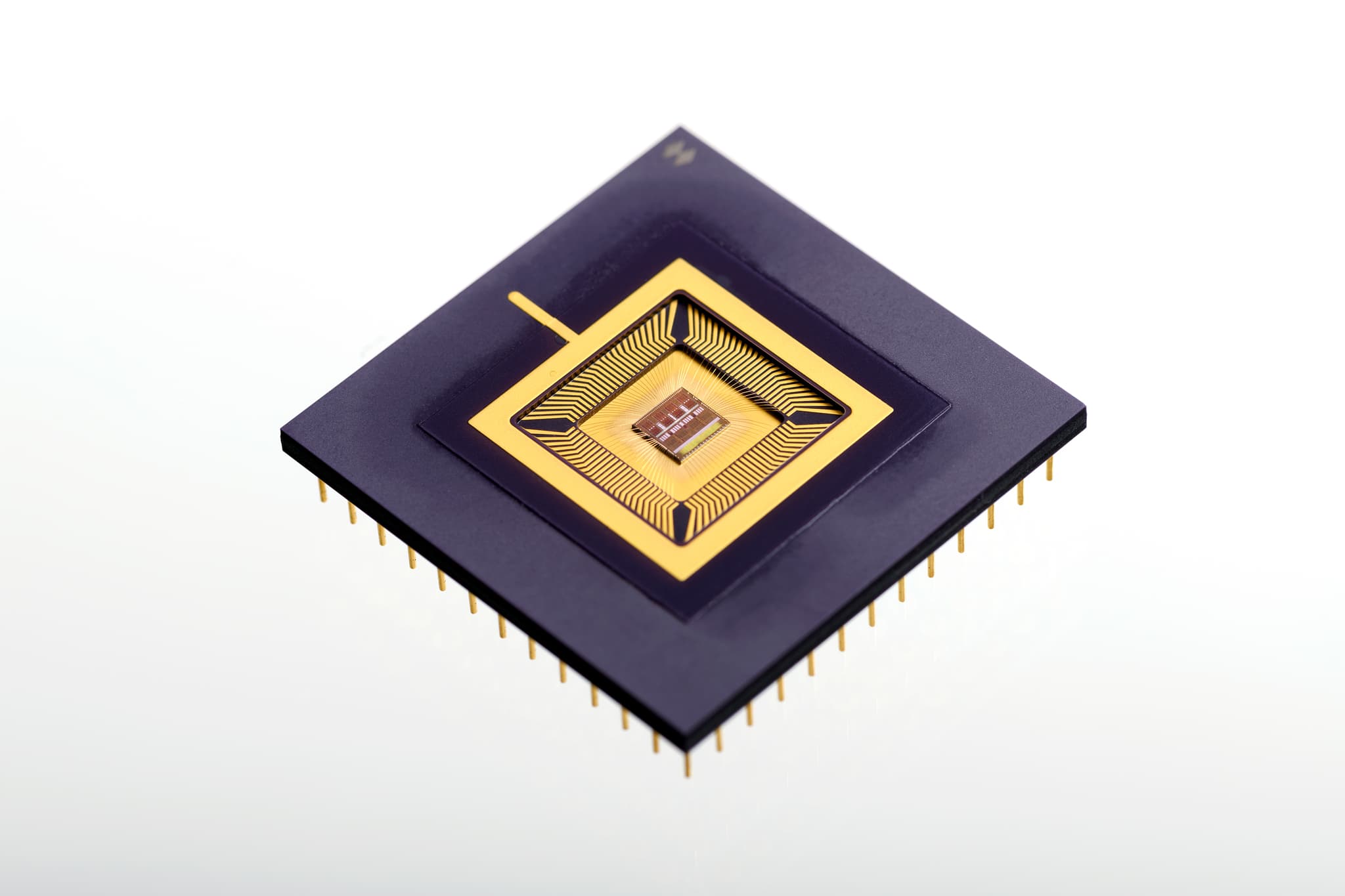

PNS chip

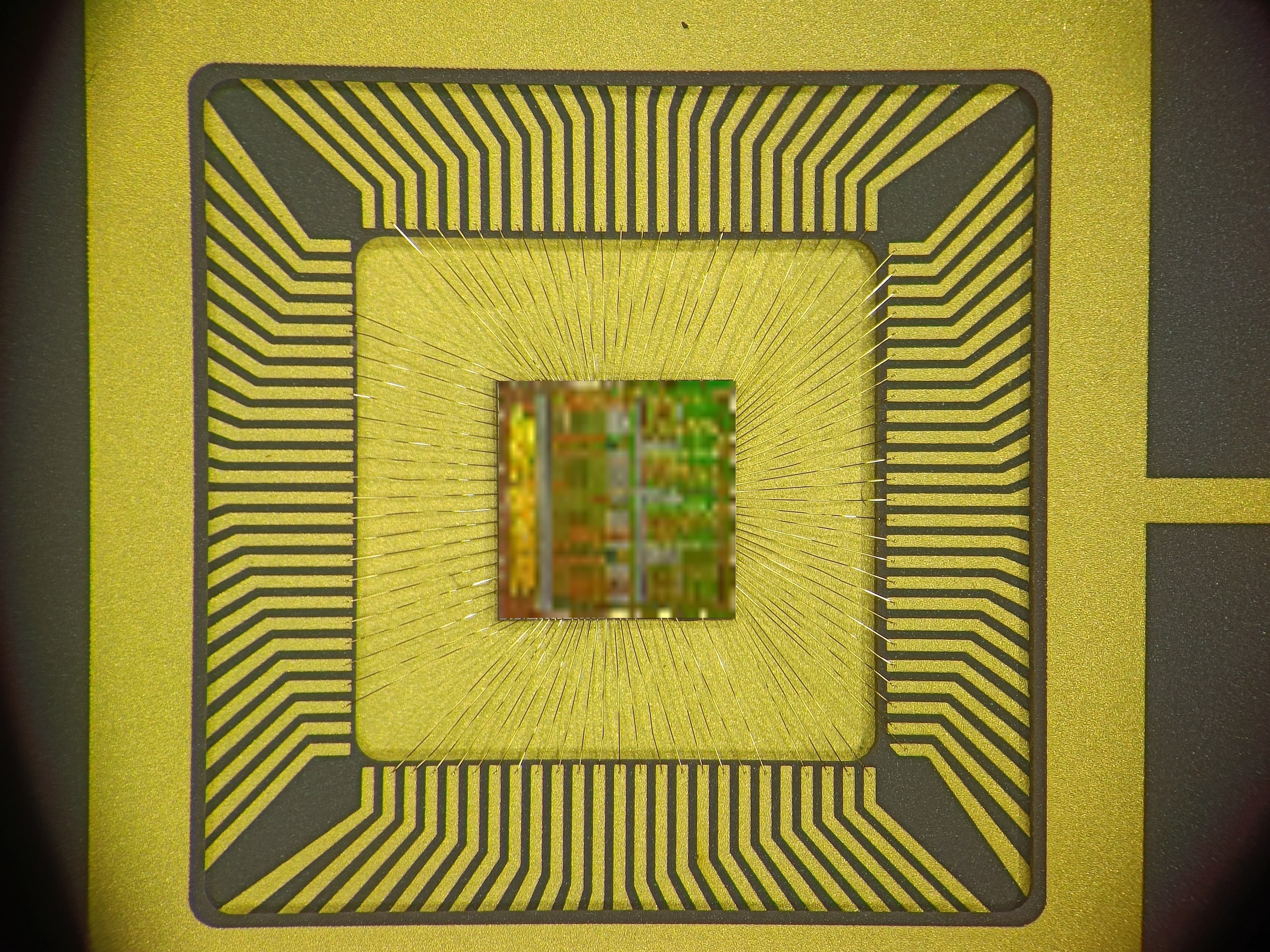

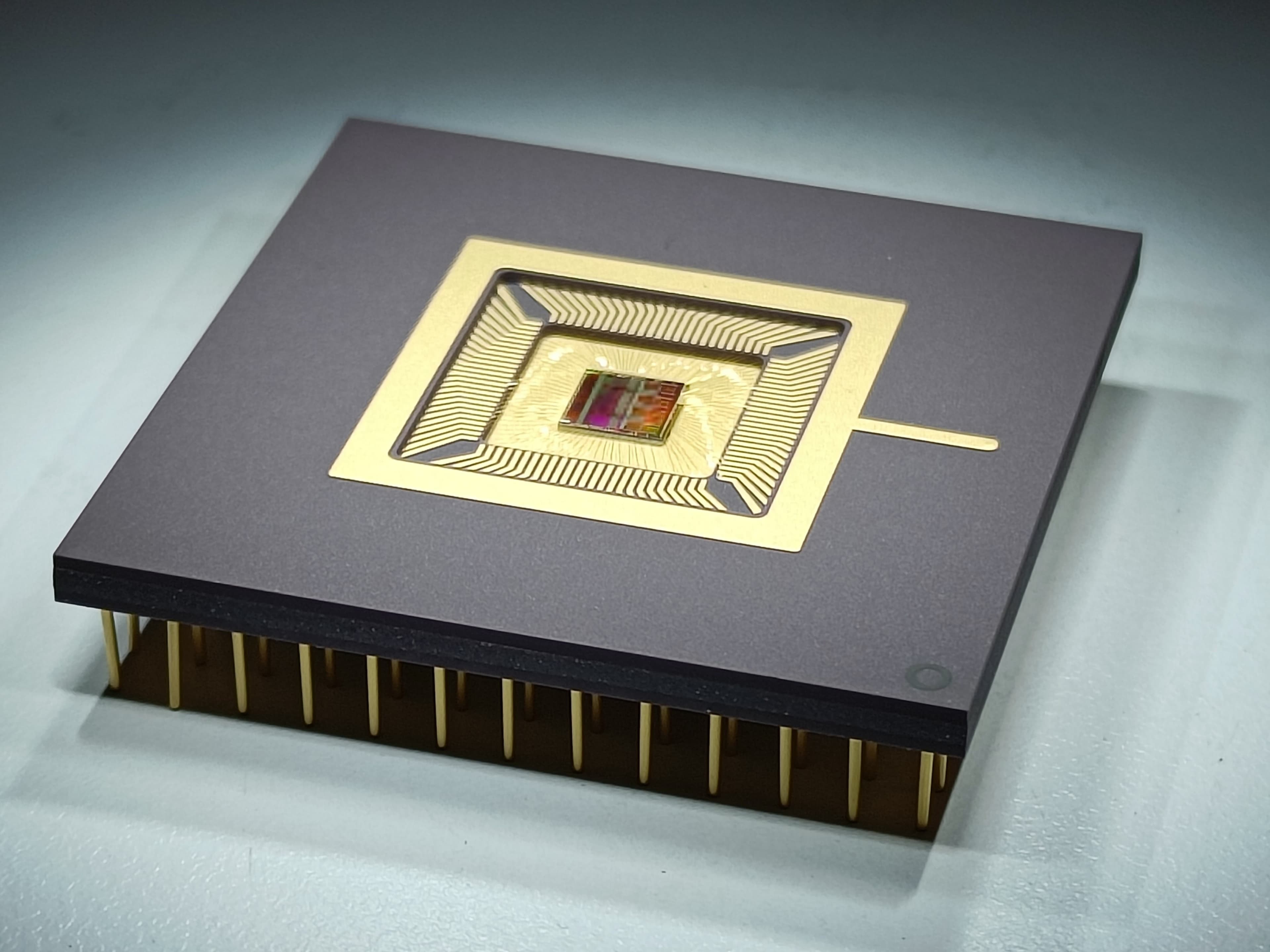

Imec’s ASIC enables selective peripheral nerve stimulation (PNS)

One-stop innovation service: from PNS components to systems

To advance PNS implant technology, imec not only works on novel stimulation methods, but also leverages its wide expertise in implantable technologies. This allows us to assist partners in developing systems that are:

  • smaller in size, and therefore less invasive
  • more affordable
  • less power-hungry

Read the 2021 press release about our collaboration with Neurogyn

Our toolbox ranges from miniaturization strategies and wireless powering to ultra-low-power radio for data transfer and algorithms to enable closed-loop solutions.

Imec’s selective PNS technology results in:

  • Bioelectronic medicine (BEM) that can be switched on and off instantaneously, which is not the case with conventional pharmaceutically administered medicine.
  • Selectivity towards specific fibers in the nerve, resulting in an improved targeted/not-targeted ratio of the effects and side-effects.
  • An expected improvement in the implantation procedure due to the use of miniaturized technology, that could lead to minimally invasive surgery.
  • Facilitation of closed-loop treatment to always target the right fibers in the nerve through on-the-fly adaptation driven by physiological measurements on end-organs.
