The popularity of cloud computing and AI – driving massive data flows – pushes demand for ultra-high-speed, energy-efficient optical links within and between data centers; links that must be able to deliver data rates well beyond today’s 200Gb/s standard. The heterogeneous integration of new materials onto silicon photonics platforms will enable next-gen electro-optical modulators and detectors for such short-reach and short-haul interconnects.
One standout material is lithium niobate (LiNbO3), renowned for its high electro-optic coefficient, making it an excellent fit for high-speed optical communication systems. Another contender is lithium tantalate (LiTaO3), valued for its electro-optic stability, high damage threshold, and UV transparency – qualities that make it ideal for high-power, temperature-sensitive applications, and systems operating at shorter wavelengths.
However, both materials contain lithium, which complicates their compatibility with standard CMOS fabrication processes. And integrating other components, such as high-speed photodetectors, alongside these materials is also far from trivial.
To address these challenges, various integration approaches are being explored. Wafer bonding, for instance, has been demonstrated with lithium niobate, but it remains costly and inefficient – since most of the material must be removed after bonding and many additional post-bonding processing steps are needed. Today, imec introduces micro-transfer printing as a promising alternative for heterogeneously integrating LiNbO3 and LiTaO3 onto a silicon photonics platform.
World first: integrating thin-film LiNbO3 modulators on a silicon photonics platform using micro-transfer printing
At this year’s European Conference on Optical Communication (ECOC), researchers from imec and Ghent University showcased an O-band 320Gb/s unamplified optical link over 2km of standard single-mode fiber, utilizing novel high-speed integrated circuits that are fully compatible with standard CMOS manufacturing. [1]
A world first, the proof of concept leverages a high-bandwidth 100GHz germanium photodiode and transfer-printed thin-film lithium niobate Mach-Zehnder modulators (MZMs) onto imec’s silicon photonics platform, co-packaged with custom-designed traveling-wave drivers and transimpedance amplifiers (TIAs).

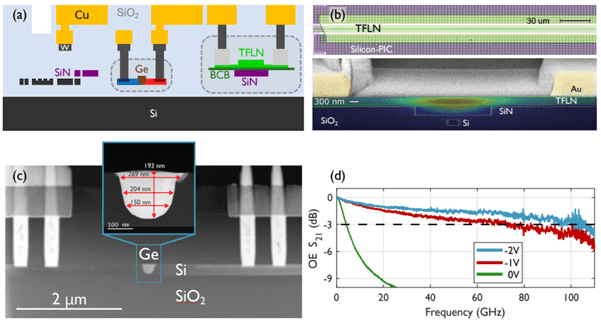

Figure 1: (a) Simplified overview of the envisioned next-generation SiPh platform. (b) Image after the integration of TFLN on a Si-PIC and SEM of a FIB cross-section of the heterogeneous EO device on a Si-PIC. (c) TEM images of the Ge/Si PD, showing the Ge growth in the deeply recessed Si cavity (d) Measured optoelectronic bandwidth of the Ge photodiode. (source: imec)
This breakthrough makes imec the first to achieve the seamless integration of thin-film LiNbO3 devices on silicon photonics. The team’s work involved adapting and refining the proper SiPh process flows, as well as co-developing photonic and electronic integrated circuits (PICs and EICs) for maximum performance. The resulting proof of concept suggests a path toward optical interconnects delivering 400Gb/s per lane.
First-ever integration of a thin-film LiTaO3 modulator on silicon photonics
In another pioneering achievement, described in a recent article in Nature Photonics, the first heterogeneous integration of a LiTaO3 modulator on a silicon photonic integrated circuit was demonstrated. [2]
Using the same micro-transfer printing technique previously applied to lithium niobate, the approach ensures full compatibility with the entire wafer stack. It enables seamless co-integration with other components such as heaters, filters, and germanium photodetectors – without compromising their performance.
“Building on our work with lithium niobate, we found that the same micro-transfer printing technique can be applied to lithium tantalate as well, demonstrating its exceptional versatility,” commented Margot Niels, the research paper’s first author. “This gives us strong confidence that, as new materials emerge, we will be able to integrate them just as effectively on silicon photonics – thus laying the groundwork for the next generations of optical interconnects.”

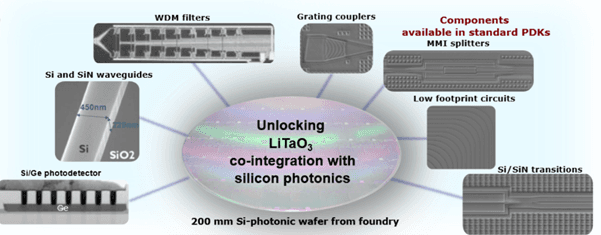

Figure 2: Generic view of a state-of-the-art Si-PIC platform with its basic components. (source: imec)
Enabling the race toward the 400Gb/s optical interconnect milestone
These research results exemplify imec’s ambition to push the boundaries of high-speed optical and electronic circuit design. Although significant work remains before the approach can be fully matured for commercial adoption, exploring new materials and integrating these advances into next-generation proofs of concept is a crucial step in the race toward the 400Gb/s optical interconnect milestone.
This work was conducted under the guidance and support of Bart Kuyken and Maximilien Billet from imec’s Photonics Research Group at Ghent University, and Xin Yin (Scott) from IDLab, an imec research group at Ghent University.
Want to know more?
- [1] Declercq, J. et al., "320 Gb/s Unamplified Transmission Using 1 00 GHz Ge PD and TFLN MZM on a Foundry-Compatible SiPh Platform Co-Packaged with Traveling-Wave Drivers and TIAs," 2025 European Conference on Optical Communications (ECOC), Copenhagen, Denmark, 2025, pp. 1-4, doi: 10.1109/ECOC66593.2025.11263113.
- [2] Niels, M., Vanackere, T., Vissers, E. et al., "A High-Speed Heterogeneous Lithium Tantalate Silicon Photonics Platform," Nat. Photon. 20, 225–231 (2026). https://doi.org/10.1038/s41566-025-01832-9, in Nature Photonics.
