Beyond 5G and 6G technologies
Imec’s Advanced RF program explores the next generation of wireless networking. Our approach combines the benefits of silicon CMOS and III-V technologies, based on concrete system needs.
Connectivity is more crucial than ever. As 5G rolls out, the industry already looks ahead to meet demands for faster data rates, lower energy consumption, and reduced latency.
By expanding the frequency spectrum above 6 GHz, larger bandwidths become available. The FR3 (Frequency Range 3) spectrum, ranging from 7-24 GHz, is gaining interest for its potential to balance capacity and coverage effectively.
Looking further, 6G will move to even higher frequencies: mmWave bands well above 100 GHz. This will enable new use cases that thrive on networks of diverse devices and new modes of human-machine interaction, such as:
- Capturing and delivering true mixed reality (XR) that merges real and virtual worlds.
- Exchanging large amounts of data for federated learning between AI systems, like in autonomous cars.
III-V Devices for Beyond 5G and 6G
These higher frequencies bring quite some challenges. The most important one being that silicon CMOS can no longer efficiently deliver the necessary performance, especially in critical front-end module (FEM) components like power amplifiers.
The solution comes from III-V semiconductors such as gallium nitride (GaN) and indium phosphide (InP). Their material properties enable them to outperform silicon CMOS, providing the required output power and efficiency at high operating frequencies.
Zoom-in of a 300 mm silicon wafer showing dies with InP NRE HBT structures.
Imec’s Advanced RF program paves the way for high-performance, energy-efficient, scalable, and low-cost radio solutions by integrating GaN and InP into established CMOS processes. Our R&D spans two levels:
- Device challenges: Bringing GaN and InP devices to 200- and 300mm silicon wafers, requiring novel manufacturing techniques, new system and circuit design approaches, etc.
- System challenges: co-integrating these GaN-on-Si- and InP-on-Si-based components, used for power amplifiers and possibly low-noise amplifiers and switches, with CMOS components for functions like frequency synthesis, up- and down-conversion, calibration, control, and beamforming.
RF GaN-on-Si for beyond 5G
Unlike GaN-on-SiC, currently used for some high-frequency RF applications, GaN-on-Si is suitable for mass production on 200- or 300mm wafers. Imec leverages its experience with Gan-on-Si for power devices and optimizes this platform for RF use.
Longread: DC Reliability of high-κ GaN-on-Si MOS-HEMTs for mmWave power amplifiers

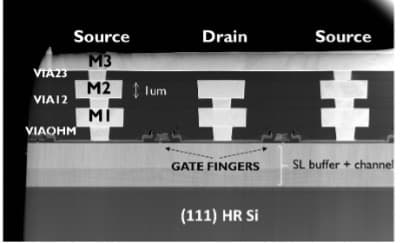

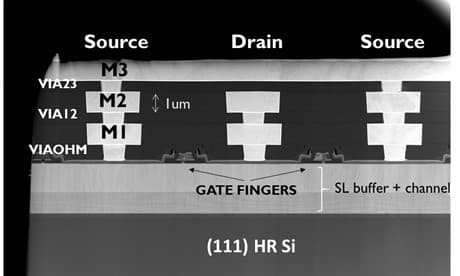

Example of CMOS-compatible GaN-on-Si technology with 3-level Cu BEOL.
Some features of imec’s RF Gan-on-Si technology:
- CMOS-compatible 200mm RF GaN-on-Si process
- In-house MOCVD growth of RF buffer and active layers (AlGaN, InAlN)
- HEMT and MISHEMT devices with Lg < 50nm and low resistive Ohmic contacts with Rc <0.15 Ω mm
- Advanced multi-layer Cu BEOL & integration of passives
Our offering includes:
- Device design and optimization to meet the performance and reliability requirements for Beyond-5G infrastructure and handset applications.
- Modeling and advanced characterization for technology pathfinding, including reliability and thermal design.
- Exploration of novel device architectures and engineered substrates.
- RF GaN-Si R&D design platform for circuit exploration and technology customization.
- FEM system and circuit design, including system-technology co-optimization and benchmarking with incumbent technologies.
- Demonstrators displaying the advantages of RF GaN-on-Si.
RF InP-on-Si for 6G
For frequencies around and above 100 GHz, InP offers the best power-efficiency trade-off. However, its potential is limited as long as its fabrication depends on lab processes on small wafers.
Imec aims to make InP manufacturing processes CMOS-compatible. Three approaches are considered for integrating InP on silicon:
- Nano-ridge engineering: Selectively growing III/V material in pre-patterned trenches in silicon.
- Strain-relaxed buffers: Growing InP on layers deposited on silicon to compensate for the lattice mismatch between Si and InP.
- Wafer reconstruction: Using die-to-wafer bonding to attach tiles made from high-quality InP substrates to a silicon wafer.
RF silicon interposer for heterogeneous integration of III-V with CMOS
Once the manufacturing of III-V devices is scaled up, further cost reduction is possible by limiting the use of these costly devices to areas where their performance is essential. Other parts of the system can then still be developed in silicon CMOS.
This chiplet approach stems from imec’s expertise in 3D integration. Technologies like scaled micro-bumps, high-aspect-ratio through-silicon vias (TSVs) and multi-layer Cu damascene routing enable heterogeneous integration through Si interposer technology, offering a smaller footprint and lower loss compared to advanced PCB technology.

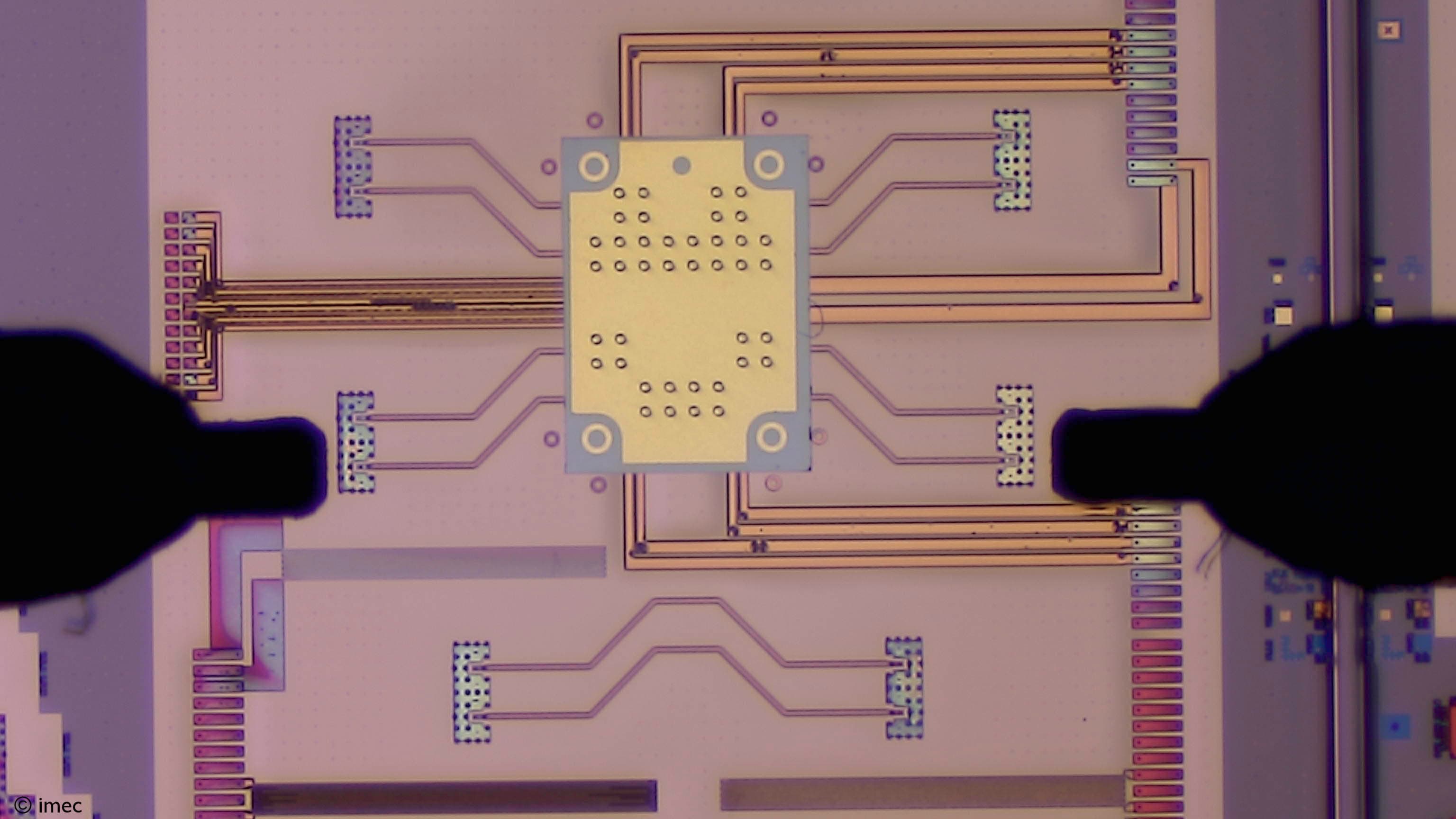

InP power amplifier chiplet mounted on RF silicon interposer with 0.1 dB insertion loss at 140 GHz.
Some features of imec’s RF interposer technology:
- Through-silicon vias (TSVs)
- High-density digital interconnects
- Thick RF polymer processing
- Multi-layer redistribution layers
- High-Q passives including resistors, inductors, MIM capacitors
- Micro-bumping to Cu & Au BEOL of ICs
- Improved thermal conductivity
- 300mm fab compatible
Our offering includes:
- RF Si interposer R&D developing new features (passives, TSV integration, wafer thinning, etc.) and exploring new materials.
- System-technology co-optimization (STCO) for achieving optimal radio functionality partitioning and guiding device process technologies and packaging/interconnection approaches.
- Modeling and advanced characterization for technology pathfinding, including reliability and thermal design.
- RF interposer R&D platform for prototyping and technology customization.
Want to partner with imec on beyond 5G and 6G?
- Join the program to get early access to imec’s R&D results. Co-develop the next RF technologies through precompetitive, cost- and risk-shared research.
- Enter into a bilateral development project to leverage imec’s technology and expertise to realize a prototype or technology demonstrator for your specific requirements.

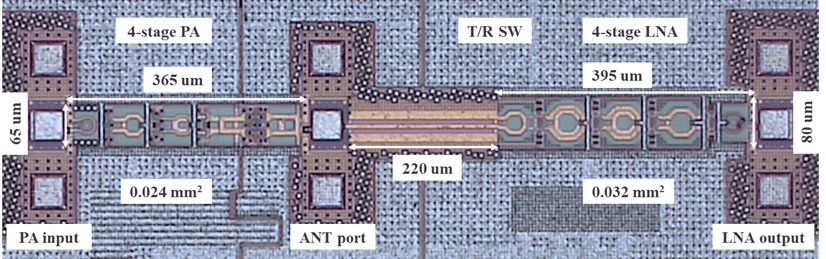

A 4-stage PA and LNA with integrated switch. Designed in 22nm CMOS with 12.5 dBm output power at 140 GHZ (reference).
